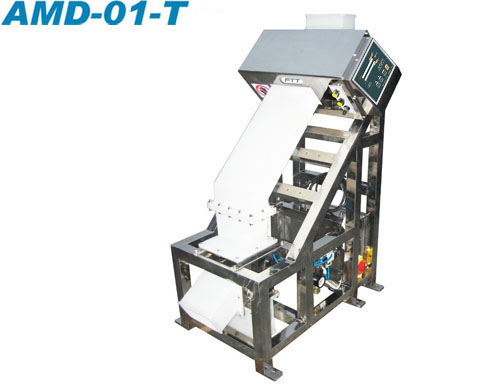

AMD-01-T金屬檢測機（傾斜式）

2011-04-28

                                              AMD-01-T金屬檢測機（傾斜式）
     全球紡織采購供應鏈色彩解決方案商——天友利，近幾年來，越來越多的頂尖零售商和服裝品牌廠家選擇天友利作為自己的優選或共選色彩技術提供商。產品涉及行業：塑料、 涂料、 紡織、 汽車、 化妝品、 數碼影像、 印前 、印刷、 油墨、 色覺測試、 包裝等。
1. 檢測對象：必須是非金屬物質，它的外包裝也要滿足這個要求。
2. 檢測目的：檢測出被檢物品中的金屬雜質。
3. 行業范圍：面粉、砂糖、化工、塑料、醫藥等各種添加劑產品，被檢物品大多是顆粒狀、粉末狀或是液體狀。
4. 用法：在產品包裝前檢測，通常裝在生產管道上，并將不合格產品自動剔除。

AMD-01-T金屬檢測機（傾斜式）

特點：
1. 整機采用鏡面不銹鋼材料，干凈不易粘灰。      5.輸送帶防跑偏處理。
2. 整機采用激光切割，制作工藝講究。            6.檢測線圈及電路元器件都采用進口元件。
3. 檢測探頭及電器控制箱采用防水防塵處理。      7.采用兩個獨立的變壓器供電。
4. 管道拆卸方便，便于清洗。                    8.防震防干擾能力強。

技術參數：
檢測口徑 檢測精度（空機） 檢測速度 電壓 重量 功率 外形尺寸
160×60mm Fe≥Φ0.5mm
Sus≥Φ1.2mm ≥3m3/H 220V/50Hz 100Kg 100W 700×440×1100mm
注：特殊規格可定做，外形結構如有變動，本公司保留解釋權

AMD-01-T METAL DETECTOR (gradient ）
1. Detection object: Must be non-metal material,and its external package must also meet this requirement.
2. Deteciton goal: Detect the metal foreign matters in the detected material.
3. Profession scope: Various additive products such as flour,granulated sugar,chemical industry,plastics,and drugs
The detected material is mainly grainy,powdery,or liquid.
4. Usage: The detecting machine is generally installed on the production pipes befofe product packing,and the non-conformity will be removed automatically.
Characteristics:
1. The complete machine makes use of mirror plate stainless steelmaterials,so it is clean and not easy to have dusts.
2. The complete machine makes use of laser cutting,so the manufacturing process is fine.
3. The detection prode and the electrical equipment control box make use of waterproofing and dust proofing.
4. The pipeline can be disassembled and cleaned simply.
5. Anti-crooked running treatment for the conveying belt.
6. Both the detecting coil and the circuit element make use of imported components.
7. Supply power with two independent transformers.
8. Have a strong anti shock and anti interference ability.
Technical parameter:
Detection caliber Detection accuracy
(no-load machine) Dtection speed Voltage Weight Power Overall Size
160×60mm Fe≥Φ0.5mm
Sus≥Φ1.2mm ≥3m3/H 220V/50Hz 100Kg 100W 700×440×1100mm
Note:The special dimension can be customized.If the external structure changes,the company reserves the explanation right.
